1924968-7 | TE Connectivity

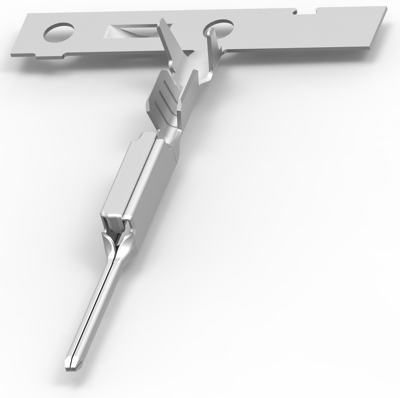

Tab, 0.13 mm², AWG 26, crimp connection, tin-plated, 1924968-7
Order No.: 35P9415
EAN: 4099889640663
MPN:
1924968-7
Unit Price (€ / pc.)
0.0988 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Total Price:
3,950.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
40000 pcs.
0.0988 €
Contacts for motor vehicles, 1924968-7, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 0.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 26 AWG, Wire Size: 0.13 mm², Wire Size Search: 0.13 mm², Wire Insulation Diameter: 0.85 - 1.05 mm, 100 °C, Operating Temperature Range: -40 - 100 °C.
Technical specifications
| Version | Flachstecker | |
| AWG cross-section | AWG 26 | |
| Insulation diameter | 0,85-1,05 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,13 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
