1971237-2 | TE Connectivity

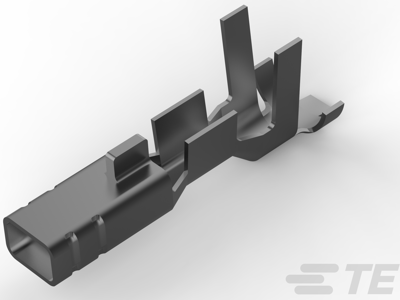

Receptacle, AWG 22-18, crimp connection, 1971237-2
Unit Price (€ / pc.)
0.1880 € *
Available: 0 pcs.
Available in 5 Days: 8,800 pcs.
Leadtime: 30 Weeks **
Power contact, 1971237-2, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Continuous Current Rating: 12 A, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 12 A, Contact Type: Receptacle, Contact Retention Within Housing: Without, Mating Tab Width: 2.7 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 2.4 - 2.7 mm, Operating Temperature Range: -55 - 150 °C..
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 22-18 | |
| Insulation diameter | 2,4-2,7 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | verzinnt |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
