1971781-2 | TE Connectivity

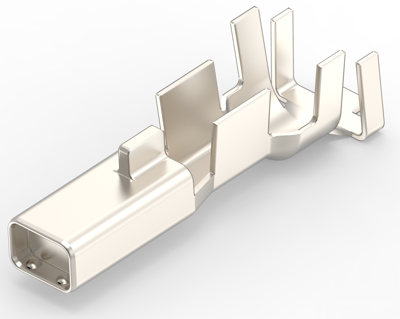

Receptacle, 2.0 mm², AWG 14, crimp connection, 1971781-2
Unit Price (€ / pc.)
0.1452 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1452 €
50 pcs.
0.1309 €
100 pcs.
0.1190 €
500 pcs.
0.1059 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 1971781-2, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Continuous Current Rating: 15 A, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 15 A, Contact Type: Receptacle, Contact Retention Within Housing: Without, Mating Tab Width: 2.7 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: With, Wire Size: 14 AWG, Wire Size: 2 mm², Accepts Wire Insulation Diameter Range: 3.4 - 3.7 mm, Operating Temperature Range: -55 - 150 °C.
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Isolationsdurchmesser | 3,4-3,7 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Kupferlegierung | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche Steckbereich | verzinnt | |
| Leiterquerschnitt | 2,0 mm² |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
