1971782-2 | TE Connectivity

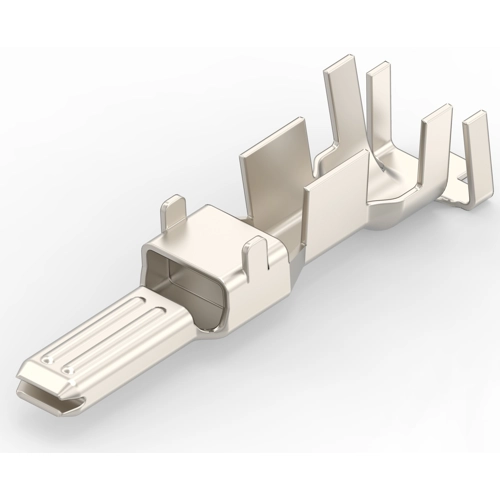

Pin contact, 2.0 mm², AWG 14, crimp connection, 1971782-2
Unit Price (€ / pc.)
0.0940 € *
Available: 0 pcs.
Available in 5 Days: 4,000 pcs.
Leadtime: 30 Weeks **
Total Price:
0.09 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.0940 €
8000 pcs.
0.0785 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 1971782-2, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Continuous Current Rating: 15 A, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 15 A, Contact Type: Tab, Contact Retention Within Housing: Without, Mating Tab Width: 2.7 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: With, Wire Size: 14 AWG, Wire Size: 2 mm², Accepts Wire Insulation Diameter Range: 3.4 - 3.7 mm, Operating Temperature Range: -55 - 150 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 14 | |
| Insulation diameter | 3.4-3.7 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 2.0 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
