1971786-2 | TE Connectivity

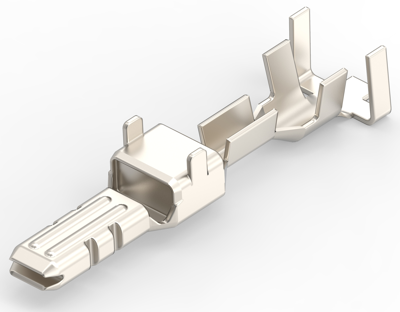

Pin contact, 0.3-0.5 mm², AWG 22-20, crimp connection, 1971786-2
Unit Price (€ / pc.)
0.1190 € *
Available: 0 pcs.
Leadtime: On Request **
Power contact, 1971786-2, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Continuous Current Rating: 9 A, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 9 A, Contact Type: Tab, Contact Retention Within Housing: Without, Mating Tab Width: 2.7 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: With, Wire Size: 22 AWG,22 - 20 AWG, Wire Size: 0.3 mm², 0.3 -0.5 mm², Accepts Wire Insulation Diameter Range: 1.14 - 2.7 mm, Operating Temperature Range: -55 - 150 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1.14-2.7 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.3-0.5 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
