1981341-2 | TE Connectivity

Receptacle, 0.85-1.25 mm², AWG 18-14, crimp connection, tin-plated, 1981341-2

Order No.: 36P1818
EAN: 4099889642902
MPN:
1981341-2
Series: Multilock

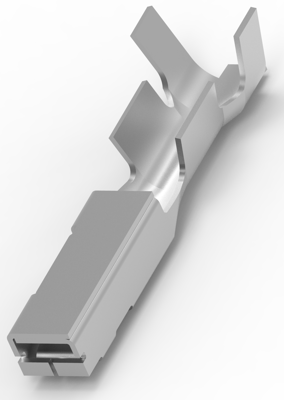

1981341-2 TE Connectivity Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.1511 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
2,418.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
16000 pcs.
0.1511 €

Contacts for motor vehicles, 1981341-2, TE Connectivity

Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.3 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.75 mm², 0.85 - 1.25 mm², 0.85 - 2 mm², Wire Size Search: 0.75 mm², 0.85 mm², 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², 2 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, 17 AWG, Wire Insulation Diameter: 1.5 - 1.8 mm, 1.5 - 2.7 mm , 1.8 mm , 1.8 - 2.1 mm, 1.8 - 2.6 mm, Operating Temperature Range: -40 - 105 °C.

Technical specifications
Ausführung Buchsenkontakt
AWG-Leiterquerschnitt AWG 18-14
Isolationsdurchmesser 1,5-1,8 mm
Kontaktanschluss Crimpanschluss
Kontaktmaterial Zinn
Kontaktoberfläche Anschlussbereich verzinnt
Kontaktoberfläche verzinnt
Leiterquerschnitt 0,85-1,25 mm²
Logistics
Ursprungsland TW
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
