2035170-1 | TE Connectivity
Receptacle, 0.35-0.5 mm², AWG 22-20, crimp connection, tin-plated, 2035170-1
Order No.: 35P9424
EAN: 4099889640724
MPN:
2035170-1
Unit Price (€ / pc.)
0.1785 € *
Available: 0 pcs.
Available in 5 Days: 7,500 pcs.
Leadtime: 29 Weeks **
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
7500 pcs.
0.1785 €
15000 pcs.
0.1749 €
*incl. VAT plus shipping costs
**Subject to prior sale

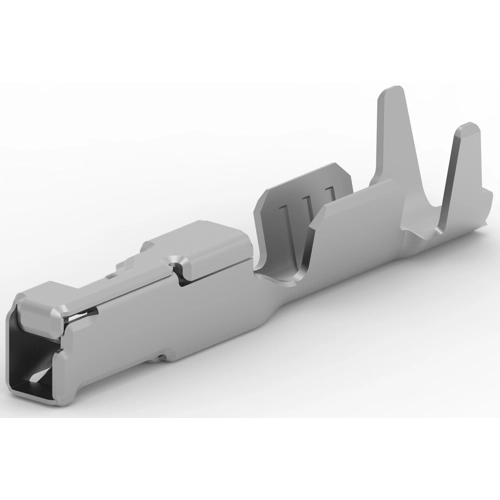

Socket contact, 2035170-1, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Clean Body, Wire Type: Copper, Seal Type: Family Seal, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.8 mm, Mating Tab Thickness: 0.64 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 22 - 20 AWG, Wire Size: 0.35 -0.5 mm², Wire Size Search: 20 AWG, 22 AWG, Wire Size Search: 0.35 mm², 0.4 mm², 0.5 mm², Wire Insulation Diameter: 1.5 - 1.85 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1.5-1.85 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-nickel alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.35-0.5 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
