2035334-3 | TE Connectivity

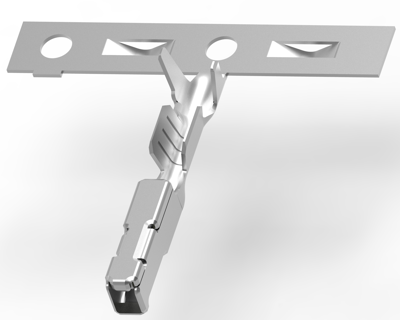

Receptacle, 0.35-0.5 mm², AWG 22-20, crimp connection, tin-plated, 2035334-3
Order No.: 35P9429
EAN: 4099889640762
MPN:
2035334-3
Unit Price (€ / pc.)
0.1833 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1833 €
50 pcs.
0.1666 €
100 pcs.
0.1499 €
500 pcs.
0.1345 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 2035334-3, TE Connectivity
Sealable: Yes, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Family Seal, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.35 - 0.5 mm², Wire Size Search: 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, Wire Insulation Diameter: 1.5 - 1.85 mm, 100 °C, Operating Temperature Range: -40 - 100 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1.5-1.85 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| contact surface | tin-plated | |
| Cable cross-section | 0.35-0.5 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
