2098165-1 | TE Connectivity

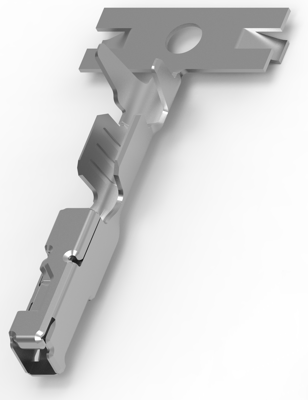

Receptacle, 0.35-0.5 mm², AWG 22-20, crimp connection, tin-plated, 2098165-1
Order No.: 35P9425
EAN: 4099889640731
MPN:
2098165-1
Unit Price (€ / pc.)
0.1261 € *
Available: 0 pcs.
Available in 5 Days: 15,000 pcs.
Leadtime: 11 Weeks **
Contacts for motor vehicles, 2098165-1, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Family Seal, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.35 - 0.5 mm², Wire Size Search: 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, Wire Insulation Diameter: 1.5 - 1.85 mm, Operating Temperature Range: -40 - 125 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1,5-1,85 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupfer-Nickel-Legierung | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,35-0,5 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
