2141116-3 | TE Connectivity

Tab, 0.5-0.75 mm², AWG 20-18, crimp connection, silver-plated, 2141116-3

Order No.: 35P9784
EAN: 4099889641462
MPN:
2141116-3
Series: MCON
TE Connectivity

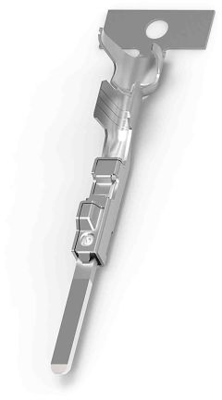

2141116-3 TE Connectivity Crimp Contacts Image 1
2141116-3 TE Connectivity Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
0.2761 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.28 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12000 pcs.
0.2761 €

Contacts for motor vehicles, 2141116-3, TE Connectivity

Sealable: Yes, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.2 mm, Mating Tab Thickness: 0.6 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 0.5 - 0.75 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², Wire Size Search: 19 AWG, 20 AWG, Wire Insulation Diameter: 1.4 - 1.9 mm, 130 °C, 140 °C, 145 °C, 150 °C, Operating Temperature Range: -40 - 150 °C.

Technical specifications
Version tab
AWG cross-section AWG 20-18
Insulation diameter 1.4-1.9 mm
Contact connection crimp connection
Contact material phosphor bronze
contact surface silver-plated
Cable cross-section 0.5-0.75 mm²
Logistics
Country of origin CN
Customs tariff number 85369040
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
