2238018-1 | TE Connectivity

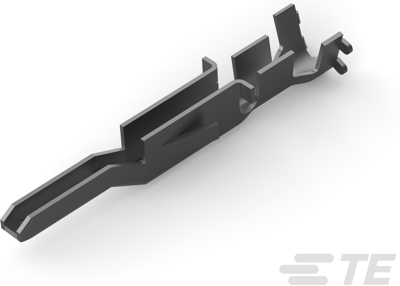

Pin contact, 0.13-0.33 mm², AWG 26-22, crimp connection, 2238018-1
Unit Price (€ / pc.)
0.0440 € *
Available: 0 pcs.
Available in 5 Days: 10,000 pcs.
Leadtime: 4 Weeks **
Total Price:
220.15 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.0440 €
15000 pcs.
0.0321 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 2238018-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 9 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Square Post Dimension: 1.14 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 26 - 22 AWG, Wire Size: 0.13 - 0.33 mm², Accepts Wire Insulation Diameter Range: 1.2 - 1.75 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | Stiftkontakt | |
| AWG cross-section | AWG 26-22 | |
| Insulation diameter | 1,2-1,75 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | verzinnt | |
| Cable cross-section | 0,13-0,33 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
