2238020-1 | TE Connectivity

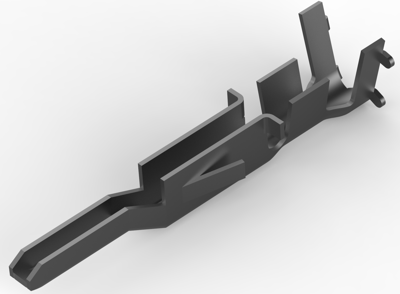

Pin contact, 0.33-0.82 mm², AWG 22-18, crimp connection, 2238020-1
Order No.: 35P5590
EAN: 4099889638653
MPN:
2238020-1
Unit Price (€ / pc.)
0.0393 € *
Available: 0 pcs.
Available in 5 Days: 32,549 pcs.
Leadtime: 26 Weeks **
Total Price:
0.04 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.0393 €
12000 pcs.
0.0357 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 2238020-1, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Gold,Pre-Tin, Contact Current Rating (Max): 9 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Square Post Dimension: 1.14 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.33 -0.82 mm², Accepts Wire Insulation Diameter Range: 1.5 - 3.1 mm, Operating Temperature Range: -40 - 105 °C.
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 22-18 | |
| Insulation diameter | 1.5-3.1 mm | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface Connection range | tin-plated | |
| Cable cross-section | 0.33-0.82 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
