282374-1 | TE Connectivity

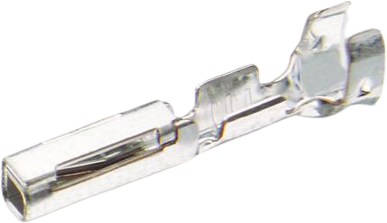

Receptacle, 0.35-0.5 mm², AWG 22-20, crimp connection, tin-plated, 282374-1
Unit Price (€ / pc.)
0.1952 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2,634.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
13500 pcs.
0.1952 €
Contacts for motor vehicles, 282374-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.35 - 0.5 mm², Wire Size Search: 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 20 AWG, 21 AWG, Wire Insulation Diameter: 1.2 - 1.6 mm, 100 °C, 105 °C, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 22-20 | |
| Isolationsdurchmesser | 1,2-1,6 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Messing | |
| Kontaktoberfläche Anschlussbereich | verzinnt | |
| Kontaktoberfläche | verzinnt | |
| Leiterquerschnitt | 0,35-0,5 mm² |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
