2825207-1 | TE Connectivity
Receptacle, 1.31 mm², AWG 16, crimp connection, 2825207-1
Order No.: 71P6986
MPN:
2825207-1
Unit Price (€ / pc.)
0.1666 € *
Available: 0 pcs.
Available in 5 Days: 7,000 pcs.
Leadtime: 33 Weeks **
Total Price:
0.17 € *
Price list
Quantity
Price per unit*
3500 pcs.
0.1666 €
7000 pcs.
0.1499 €
*incl. VAT plus shipping costs
**Subject to prior sale

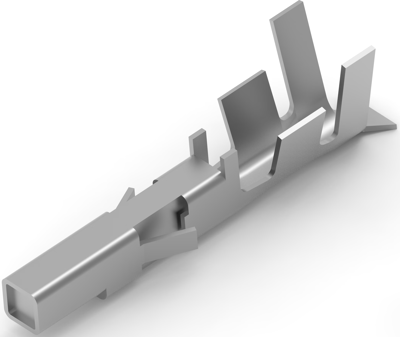

Socket contact, 2825207-1, TE Connectivity
Power contact, Contact, 600 VAC, Tin, 16 AWG Wire size, 1.31 mm² Wire size, Wire & Cable, Crimp, Power, Socket, -40 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 16 | |
| Insulation diameter | 1.5-3.1 mm | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | tin-plated | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 1.31 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
