3-647466-1 | TE Connectivity

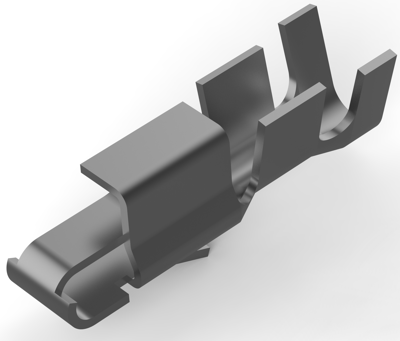

Receptacle, 1.29-1.42 mm², AWG 16, crimp connection, 3-647466-1
Unit Price (€ / pc.)
0.0857 € *
Available: 0 pcs.
Available in 5 Days: 11,000 pcs.
Leadtime: 21 Weeks **
Total Price:
0.09 € *
Price list
Quantity
Price per unit*
5500 pcs.
0.0857 €
11000 pcs.
0.0726 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-to-board connector contact, 3-647466-1, TE Connectivity
Connector System: Wire-to-Board,Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 10 A, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.78 - 2.84 mm, Wire Size: 16 AWG, Wire Size: 2550 - 2800 CMA, Wire Size: 1.29 - 1.42 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 16 | |
| Insulation diameter | 1.78-2.84 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 1.29-1.42 mm² |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
