368085-1 | TE Connectivity

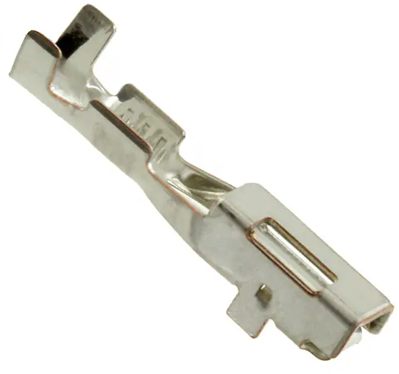

Receptacle, 0.3-0.5 mm², AWG 22-20, crimp connection, tin-plated, 368085-1
Unit Price (€ / pc.)
0.0976 € *
Available: 0 pcs.
Leadtime: On Request **
Contacts for motor vehicles, 368085-1, TE Connectivity
Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.3 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 22 - 20 AWG, Wire Size: 0.3 - 0.5 mm², Wire Size Search: 0.3 mm², 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 21 AWG, 22 AWG, Wire Insulation Diameter: 1.1 - 2.3 mm, 100 °C, 105 °C, Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1.1-2.3 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-nickel alloy | |
| contact surface | tin-plated | |
| Cable cross-section | 0.3-0.5 mm² |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
