5-1534116-1 | TE Connectivity

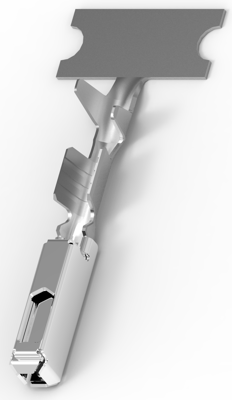

Receptacle, 0.35-0.5 mm², AWG 22-20, crimp connection, tin-plated, 5-1534116-1
Order No.: 36P1336
EAN: 4099889641998
MPN:
5-1534116-1
Unit Price (€ / pc.)
0.0797 € *
Available: 0 pcs.
Leadtime: 28 Weeks **
Total Price:
4,145.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
52000 pcs.
0.0797 €
Contacts for motor vehicles, 5-1534116-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Clean Body, Automotive terminal Wire Type: Copper, Automotive terminal Seal Type: Family Seal, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 0.63 mm, Mating Tab Thickness: 0.63 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 0.35 - 0.5 mm², Wire Size Search: 0.35 mm², 0.4 mm², 0.5 mm², Wire Size Search: 23 AWG, Wire Insulation Diameter: 1.2 - 1.6 mm, 140 °C, Operating Temperature Range: -40 - 140 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1,2-1,6 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupfer-Nickel-Legierung | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 0,35-0,5 mm² |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
