7-1452668-1 | TE Connectivity

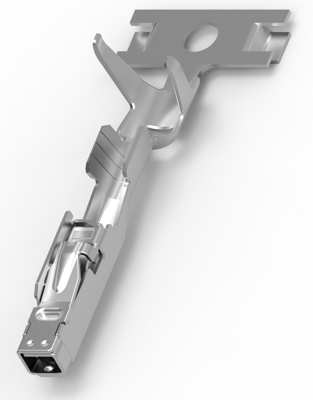

Receptacle, 0.5-0.75 mm², AWG 20-18, crimp connection, tin-plated, 7-1452668-1
Unit Price (€ / pc.)
0.1571 € *
Available: 1,200 pcs.
Leadtime: On Request **
Total Price:
7.85 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1571 €
100 pcs.
0.1428 €
500 pcs.
0.1249 €
1000 pcs.
0.1059 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contacts for motor vehicles, 7-1452668-1, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.2 mm, Mating Tab Thickness: 0.6 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 20 AWG, Wire Size: 0.5 - 0.75 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², Wire Size Search: 18 AWG, 19 AWG, Wire Insulation Diameter: 1.3 - 1.9 mm, 130 °C, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 20-18 | |
| Insulation diameter | 1.3-1.9 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 0.5-0.75 mm² |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
