7-1452668-2 | TE Connectivity
Receptacle, 0.5-0.75 mm², AWG 20-18, crimp connection, gold-plated, 7-1452668-2
Unit Price (€ / pc.)
0.1428 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
3,427.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
24000 pcs.
0.1428 €

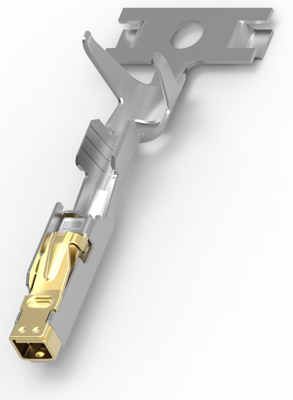

Socket contact, 7-1452668-2, TE Connectivity
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.2 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Gold (Au), Termination Method: Crimp, Wire Size: 20 AWG, Wire Size: 0.5 -0.75 mm², Wire Size Search: 18 AWG, 19 AWG, Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², Wire Insulation Diameter: 1.3 - 1.9 mm, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 20-18 | |
| Insulation diameter | 1,3-1,9 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface Connection range | verzinnt | |
| contact surface | vergoldet | |
| Cable cross-section | 0,5-0,75 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
