881594-1 | TE Connectivity

Tab, 1.0-1.5 mm², AWG 17-15, crimp connection, tin-plated, 881594-1

Order No.: 35P9316
EAN: 4099889640632
MPN:
881594-1
Series: Econseal
TE Connectivity
881594-1 TE Connectivity Crimp Contacts

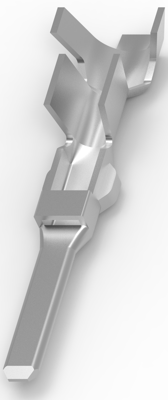

Image may differ
Unit Price (€ / pc.)
0.1404 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
24000 pcs.
0.1404 €

Contacts for motor vehicles, 881594-1, TE Connectivity

Sealable: No, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 1.8 mm, Mating Tab Thickness: 0.64 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 1 - 1.5 mm², Wire Size Search: 1 mm², 1.25 mm², 1.3 mm², 1.5 mm², Wire Size Search: 16 AWG, 17 AWG, Wire Insulation Diameter: 1.4 - 2.4 mm.

Technical specifications
Version tab
AWG cross-section AWG 17-15
Insulation diameter 1.4-2.4 mm
Contact connection crimp connection
Contact material brass
contact surface tin-plated
Cable cross-section 1.0-1.5 mm²
Logistics
Country of origin IN
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
