917764-1 | TE Connectivity

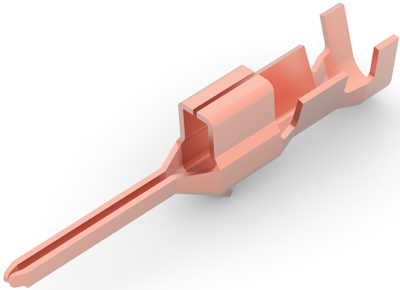

Tab, 0.3-0.53 mm², AWG 22-20, crimp connection, 917764-1
Order No.: 35P4352
EAN: 4099889637403
MPN:
917764-1
Unit Price (€ / pc.)
0.0500 € *
Available: 0 pcs.
Available in 5 Days: 48,000 pcs.
Leadtime: 18 Weeks **
Total Price:
0.05 € *
Price list
Quantity
Price per unit*
8000 pcs.
0.0500 €
16000 pcs.
0.0476 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-to-board connector contact, 917764-1, TE Connectivity
Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Tab, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 1.4 - 1.8 mm, Wire Size: 22 - 20 AWG, Wire Size: 0.3 - 0.53 mm², Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Version | tab | |
| AWG cross-section | AWG 22-20 | |
| Insulation diameter | 1.4-1.8 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| Contact surface mating area | tin-plated | |
| Cable cross-section | 0.3-0.53 mm² |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
