917765-1 | TE Connectivity

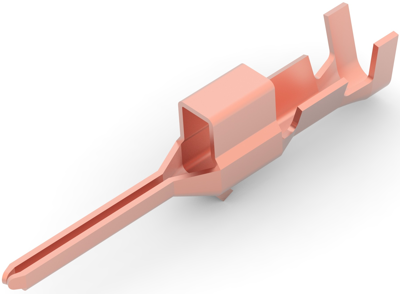

Tab, 0.12-0.35 mm², AWG 28-22, crimp connection, 917765-1
Order No.: 35P4353
EAN: 4099889637410
MPN:
917765-1
Unit Price (€ / pc.)
0.0476 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
1,904.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
40000 pcs.
0.0476 €
Wire-to-board connector contact, 917765-1, TE Connectivity
Connector System: Wire-to-Wire, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Tab, Contact Mating Area Plating Material: Pre-Tin, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Locking Lance, Connector Mounting Type: Cable Mount (Free-Hanging), Accepts Wire Insulation Diameter Range: 0.93 - 1.5 mm, Wire Size: 26 - 22 AWG, Wire Size: 0.12 - 0.35 mm², Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Version | Flachstecker | |
| AWG cross-section | AWG 28-22 | |
| Insulation diameter | 0,93-1,5 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface mating area | verzinnt | |
| Cable cross-section | 0,12-0,35 mm² |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
