963766-1 | TE Connectivity

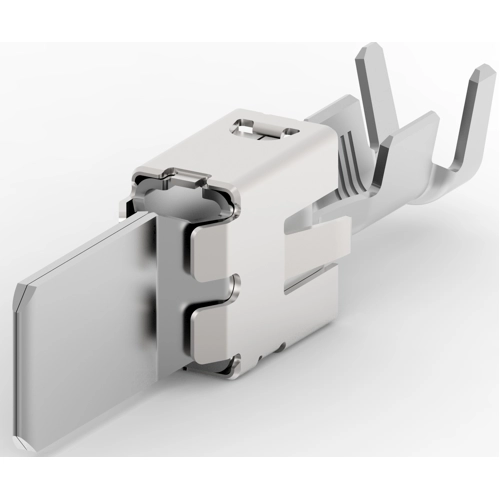

Tab, 4.0-6.0 mm², AWG 11-9, crimp connection, tin-plated, 963766-1
Order No.: 36P3646
EAN: 4099889646627
MPN:
963766-1
Unit Price (€ / pc.)
1.3090 € *
Available: 0 pcs.
Leadtime: 30 Weeks **
Total Price:
77,702.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
59360 pcs.
1.3090 €
Contacts for motor vehicles, 963766-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Insulated: No, Automotive terminal Seal Type: Family Seal or Unsealed, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 9.5 mm, Mating Tab Thickness: 1.2 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 4 - 6 mm², Wire Size Search: 4 mm², 5 mm², 6 mm², Tab Length: 13.9 mm, Wire Insulation Diameter: 4 - 5.2 mm, Operating Temperature (Max): 130 °C, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | Flachstecker | |
| AWG cross-section | AWG 11-9 | |
| Insulation diameter | 4-5,2 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface Connection range | verzinnt | |
| contact surface | verzinnt | |
| Cable cross-section | 4,0-6,0 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
