963768-2 | TE Connectivity

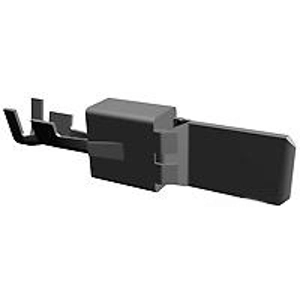

Tab, 6.0-10 mm², AWG 9-7, crimp connection, tin-plated, 963768-2
Order No.: 36P3648
EAN: 4099889646641
MPN:
963768-2
Unit Price (€ / pc.)
1.5351 € *
Available: 0 pcs.
Leadtime: On Request **
Contacts for motor vehicles, 963768-2, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Insulated: No, Automotive terminal Seal Type: Family Seal or Unsealed, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 9.5 mm, Mating Tab Thickness: 1.2 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 6 - 10 mm², Wire Size Search: 6 mm², 8 mm², 10 mm², Tab Length: 13.9 mm, Wire Insulation Diameter: 4.6 - 6.6 mm, Operating Temperature (Max): 130 °C, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Version | tab | |
| AWG cross-section | AWG 9-7 | |
| Insulation diameter | 4.6-6.6 mm | |
| Contact connection | crimp connection | |
| Contact material | copper-iron alloy | |
| Contact surface Connection range | tin-plated | |
| contact surface | tin-plated | |
| Cable cross-section | 6.0-10 mm² |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
