1-1393738-2 | TE Connectivity
D-Sub connector housing, size: 3 (DB), angled 37.5°, cable Ø 5 to 11 mm, plastic, pebble gray, 1-1393738-2
Order No.: 52F4460
EAN: 4099889812633
MPN:
1-1393738-2
V42254-A6000-K125
Unit Price (€ / pc.)
17.7667 € *
Available: 31 pcs.
Leadtime: 10 Weeks **
Total Price:
17.77 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7667 €
10 pcs.
16.5291 €
50 pcs.
15.2082 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable housings for sub-D connectors, type TE Connectivity/AMP 1-139.
Non-shielded; Inner conductor peak voltage at electrostatic discharge of 15 kV: max. 1.5 V. Attenuation at 10 MHz: min. 50 dB. Operating temperatures: –40 to +80 °C. Housing: pebble gray (RAL 7032), self-extinguishing to UL 94 VDC1.

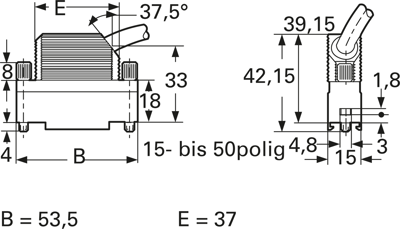

Technical attributes (type, function, number of poles, dimensions B/E, color): 1-1393738-2, 25-pole, B 53.5/E 37.0 mm
Technical specifications
| Farbe | kieselgrau | |
| Gehäusegröße | 3 (DB) | |
| Gehäusematerial | Kunststoff | |
| Kabelausgang | abgewinkelt 37,5° | |
| Kabeldurchmesser | 5 bis 11 mm | |
| Verriegelung | Rändelschraube 4-40 UNC |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
