1393738-3 | TE Connectivity
D-Sub connector housing, size: 3 (DB), angled 37.5°, cable Ø 5 to 11 mm, plastic, shielded, pebble gray, 1393738-3
Order No.: 52F4490
EAN: 4099889812671
MPN:
1393738-3
V42254-A6000-G125
Abgekündigt
Unit Price (€ / pc.)
10.0079 € *
Available: 308 pcs.
Next delivery: 300 pcs. on 2025-09-16
Leadtime: 10 Weeks **
Total Price:
10.01 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0079 €
10 pcs.
9.3058 €
50 pcs.
8.5680 €
100 pcs.
7.7112 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable housings for sub-D connectors, type TE Connectivity/AMP 1-139.
Non-shielded; Inner conductor peak voltage at electrostatic discharge of 15 kV: max. 1.5 V. Attenuation at 10 MHz: min. 50 dB. Operating temperatures: –40 to +80 °C. Housing: pebble gray (RAL 7032), self-extinguishing to UL 94 VDC1.
Shielded, type 0-139.

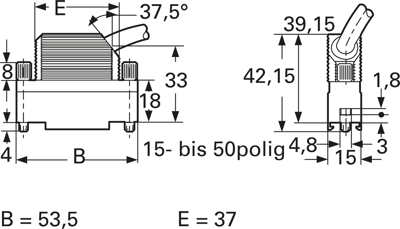

Technical attributes (type, function, number of poles, dimensions B/E, color): 0-1393738-3, 25-pole, B 53.5/E 37.0 mm
Technical specifications
| Farbe | kieselgrau | |
| Gehäusegröße | 3 (DB) | |
| Gehäusematerial | Kunststoff, geschirmt | |
| Kabelausgang | abgewinkelt 37,5° | |
| Kabeldurchmesser | 5 bis 11 mm | |
| Verriegelung | Rändelschraube 4-40 UNC |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
