1393738-5 | TE Connectivity
D-Sub connector housing, size: 5 (DD), angled 37.5°, cable Ø 5 to 14.5 mm, plastic, shielded, pebble gray, 1393738-5
Order No.: 52F4500
EAN: 4099889812695
MPN:
1393738-5
V42254-A6000-G150
Unit Price (€ / pc.)
20.3252 € *
Available: 2 pcs.
Leadtime: On Request **
Total Price:
20.33 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3252 €
10 pcs.
17.8976 €
50 pcs.
16.6838 €
150 pcs.
15.9341 €
500 pcs.
15.1368 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable housings for sub-D connectors, type TE Connectivity/AMP 1-139.
Non-shielded; Inner conductor peak voltage at electrostatic discharge of 15 kV: max. 1.5 V. Attenuation at 10 MHz: min. 50 dB. Operating temperatures: –40 to +80 °C. Housing: pebble gray (RAL 7032), self-extinguishing to UL 94 VDC1.
Shielded, type 0-139.

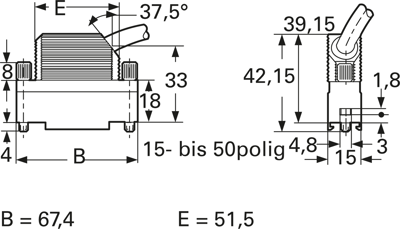

Technical attributes (type, function, number of poles, dimensions B/E, color): 0-1393738-5, 50-pole, B 67.4/E 51.5 mm
Technical specifications
| Colour | pebble gray | |
| Shell size | 5 (DD) | |
| Shell Material | plastic, shielded | |
| Cable Outlet | angled 37.5° | |
| Cable diameter | 5 to 14.5 mm | |
| Type of locking | knurled screw 4-40 UNC |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
