2007793-1 | TE Connectivity

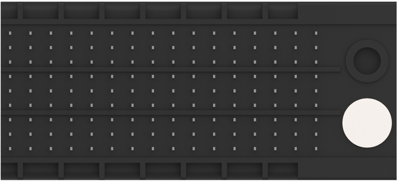

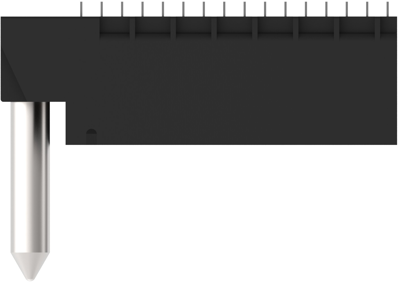

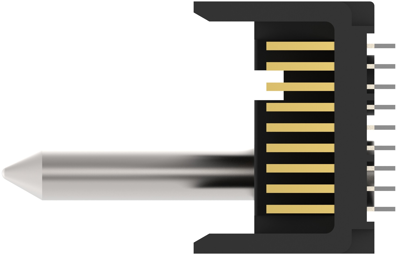

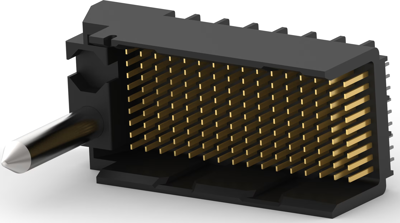

Male connector, 144 pole, pitch 1.9 mm, straight, 2007793-1
Unit Price (€ / pc.)
13.8397 € *
Available: 0 pcs.
Available in 5 Days: 104 pcs.
Leadtime: 10 Weeks **
Total Price:
13.84 € *
Price list
Quantity
Price per unit*
10 pcs.
13.8397 €
35 pcs.
13.0186 €
*incl. VAT plus shipping costs
**Subject to prior sale
Backplane connector, 2007793-1, TE Connectivity
The 2007793-1 is a backplane connector that offers flexibility and advanced mechanical and electrical performance with two compliant-pin attach options. Inline staggered, bifurcated contact beams in daughter card interface provides improved mating performance.
Applications
- Telecommunications equipment
- Hubs, routers, switches
- Data networking equipment
- Test and measurement equipment
- Medical diagnostic equipment
Technical specifications
| Connection | press-in connection | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated current | 0.75 A | |
| Orientation | straight | |
| Pin number | 144 pole | |
| Grid | 1.9 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
