2198174-1 | TE Connectivity

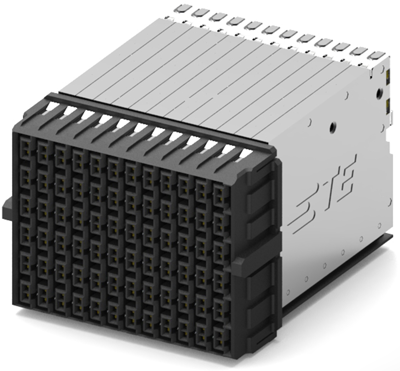

Female connector, 144 pole, pitch 2.5 mm, angled, 2198174-1
Unit Price (€ / pc.)
140.1820 € *
Available: 0 pcs.
Available in 5 Days: 118 pcs.
Leadtime: 13 Weeks **
Total Price:
140.18 € *
Price list
Quantity
Price per unit*
8 pcs.
140.1820 €
16 pcs.
128.4367 €
*incl. VAT plus shipping costs
**Subject to prior sale
Hard metric connector, 2198174-1, TE Connectivity
The 2198174-1 is designed for high speed or high signal quality applications that require serial data rates up to 56 Gb/s with superior signal integrity performance.
Features
- Individual shielded pairs facilitate excellent signal integrity and EMI performance
- Optimized PCB footprint design
- Backplane uses eye of needle (EON) press-fit technology
- Compatible with existing card cage and connector mechanical envelopes
- Redundant points of contact in mating interface
Technical specifications
| Connection | press-in connection | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 0.4 A | |
| Orientation | angled | |
| Pin number | 144 pole | |
| Grid | 2.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
