2302790-1 | TE Connectivity

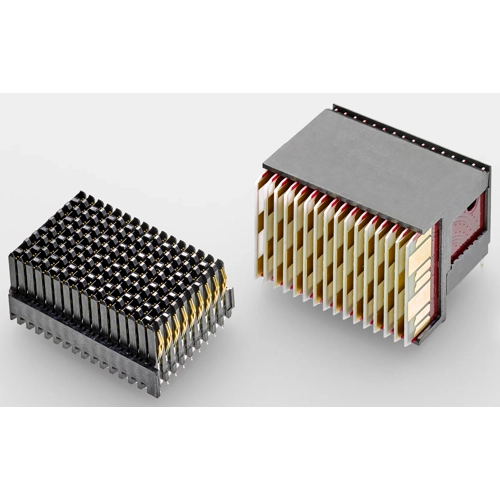

Female connector, 144 pole, pitch 1.8 mm, straight, 2302790-1
Unit Price (€ / pc.)
66.1878 € *
Available: 0 pcs.
Available in 5 Days: 112 pcs.
Leadtime: 23 Weeks **
Backplane connector, 2302790-1, TE Connectivity
The 2302790-1 is backplane connector that offers levels of flexibility and customization. It optimizes footprints for signal integrity and ease of board design. This product also contains three levels of signal contact sequencing.
Features
- 10 Gbps performance
- Differential, Single-ended and Power
- Modular connector system
Applications
- Military
- Aerospace and Defense
- Mass data storage
- Telecommunications equipment
- High-end and mid-range servers
Technical specifications
| Connection | press-in connection | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 1 A | |
| Orientation | straight | |
| Pin number | 144 pole | |
| Grid | 1.8 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
