2329739-1 | TE Connectivity

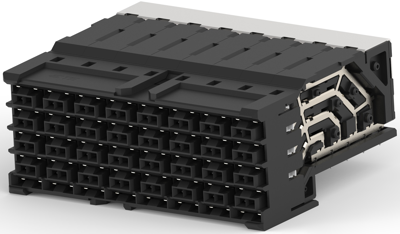

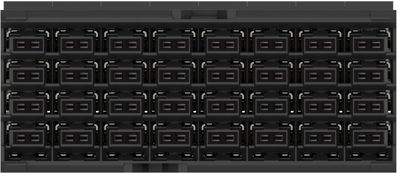

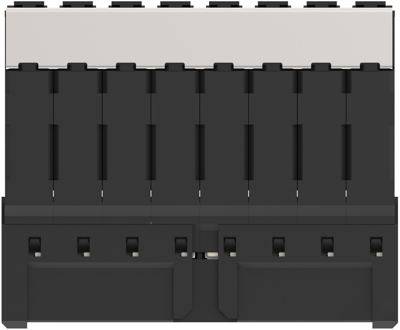

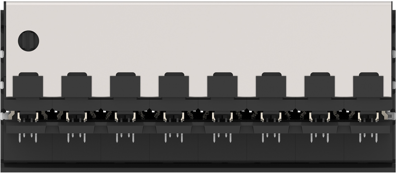

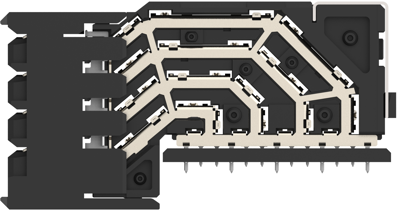

Female connector, 64 pole, pitch 3.9 mm, angled, 2329739-1
Unit Price (€ / pc.)
32.9392 € *
Available: 0 pcs.
Available in 5 Days: 277 pcs.
Leadtime: 11 Weeks **
Total Price:
32.94 € *
Price list
Quantity
Price per unit*
16 pcs.
32.9392 €
32 pcs.
31.0114 €
*incl. VAT plus shipping costs
**Subject to prior sale
Hard metric connector, 2329739-1, TE Connectivity
The 2329739-1 is designed for high speed or high signal quality applications that require serial data rates up to 56 Gb/s with superior signal integrity performance.
Features
- Individual shielded pairs facilitate excellent signal integrity and EMI performance
- Optimized PCB footprint design
- Backplane uses eye of needle (EON) press-fit technology
- Compatible with existing card cage and connector mechanical envelopes
- Redundant points of contact in mating interface
Technical specifications
| Anschluss | Einpressanschluss | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennstrom | 0.4 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 64-polig | |
| Rastermaß | 3.9 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
