T1912241129-009 | TE Connectivity

Housing, size HB24, die-cast aluminum, PG29, angled, screw locking, IP68, T1912241129-009

Order No.: 72P3384
EAN: 4099891568641
MPN:
T1912241129-009
Series: HDC IP68 EMC
TE Connectivity

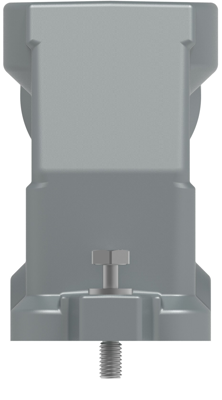

T1912241129-009 TE Connectivity Housings for HDC Connectors Image 1

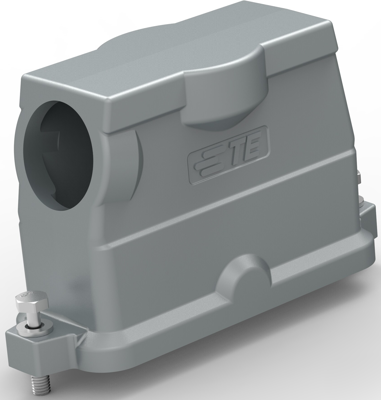

T1912241129-009 TE Connectivity Housings for HDC Connectors Image 2

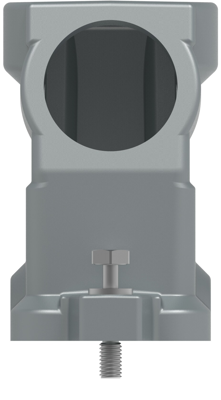

T1912241129-009 TE Connectivity Housings for HDC Connectors Image 3

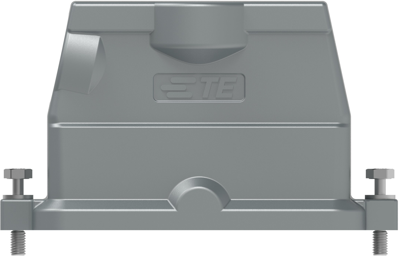

T1912241129-009 TE Connectivity Housings for HDC Connectors Image 4

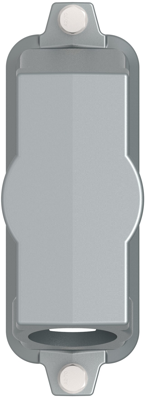

T1912241129-009 TE Connectivity Housings for HDC Connectors Image 5
Image may differ
Print
Key Specification:
Version hood
Shell size HB24
Shell Material die-cast aluminum
Cable Outlet PG29, angled
Type of locking screw locking

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
46.8860 € *
Available: 0 pcs.
Available in 5 Days: 20 pcs.
Leadtime: 24 Weeks **
Add to Cart
Total Price:
46.89 € *
Price list
Quantity
Price per unit*
2 pcs.
46.8860 €
5 pcs.
33.9864 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance

Hood, T1912241129-009, TE Connectivity

Heavy duty connector hood, Side entry, Screwlock.
Technical specifications
Version hood
Shell size HB24
Shell Material die-cast aluminum
Cable Outlet PG29, angled
Degree of protection (IP) IP68
Type of locking screw locking
Show similar products 0
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
