1-2213929-8 | TE Connectivity

LED Connector, 1-2213929-8

Order No.: 71P1407
EAN: 4099891625160
MPN:
1-2213929-8
TE Connectivity

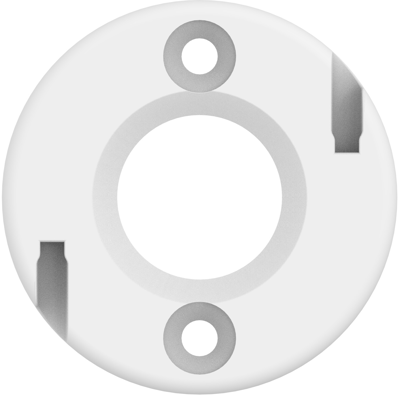

1-2213929-8 TE Connectivity LED Connectors Image 1

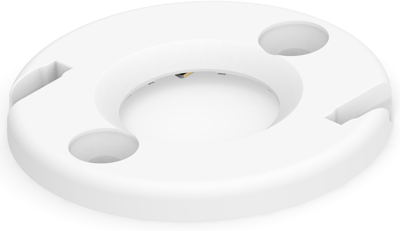

1-2213929-8 TE Connectivity LED Connectors Image 2

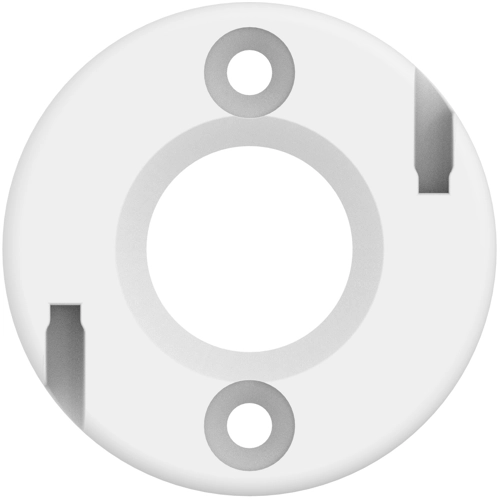

1-2213929-8 TE Connectivity LED Connectors Image 3
1-2213929-8 TE Connectivity LED Connectors Image 4
1-2213929-8 TE Connectivity LED Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Available in 5 Days: 5,250 pcs.
Leadtime: 22 Weeks **
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
70 pcs.
1.4399 €
350 pcs.
1.3566 €
*incl. VAT plus shipping costs
**Subject to prior sale

LED Connector, 1-2213929-8, TE Connectivity

The 1-2213929-8 offers higher level of integration via a solderless connection to chip-on-board (COB) LEDs using standard pan-head and countersunk screws.

Features

  • Ease termination with integrated poke-in wire termination
  • High-reflectivity, halogen free and red phosphorus free plastic housing material

Applications

  • Spot Lights
  • Recessed Downlights
  • Retrofit Lamps
  • Architectural Lighting
  • Sign and symbol luminaires
  • Area and object lighting
Technical specifications
Connection Poke-In connection
contact surface gold-plated
Rated voltage (DC) 60 V
Rated current 3 A
Orientation straight
Pin number 2 pole
Logistics
Country of origin CN
Customs tariff number 85414100
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
