1-2325811-3 | TE Connectivity
LED Connector, 1-2325811-3
Order No.: 71P1625
EAN: 4099891625276
MPN:
1-2325811-3
Unit Price (€ / pc.)
1.7731 € *
Available: 0 pcs.
Available in 5 Days: 1,400 pcs.
Leadtime: 22 Weeks **
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
60 pcs.
1.7731 €
260 pcs.
1.6660 €
*incl. VAT plus shipping costs
**Subject to prior sale

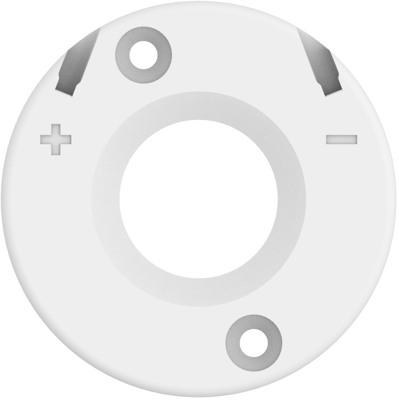

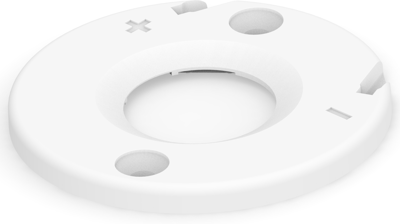

LED Connector, 1-2325811-3, TE Connectivity
The 1-2325811-3 is a LED holder that uses a high strength, highly reflective and halogen free housing material.
Features
- Quick and easy assembly of the COB LEDs into the luminaire
Applications
- Spot Lights
- General Lighting
- Downlights
- Horticultural Lighting
Technical specifications
| Connection | Poke-In connection | |
| contact surface | gold-plated | |
| Rated voltage (DC) | 60 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 1 pole | |
| Grid | 35 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
