2271180-1 | TE Connectivity
2271180-1
Order No.: 39P1455
EAN: 4099891024413
MPN:
2271180-1
Unit Price (€ / pc.)
0.3094 € *
Available: 0 pcs.
Available in 5 Days: 20,621 pcs.
Leadtime: 30 Weeks **
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
300 pcs.
0.3094 €
1500 pcs.
0.2916 €
*incl. VAT plus shipping costs
**Subject to prior sale

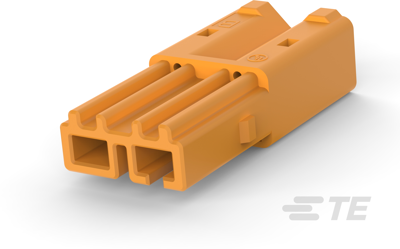

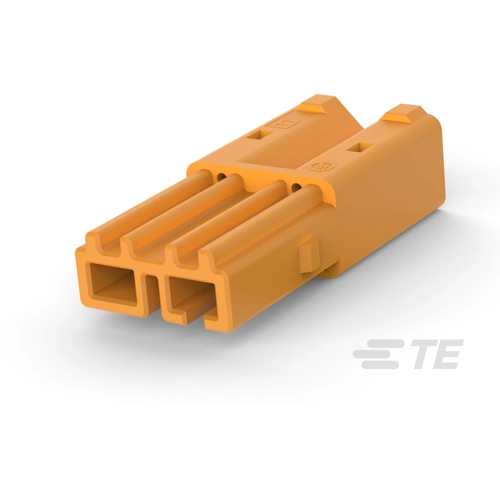

LED connector, 2271180-1, TE
2 position wire-to-wire connector provides a space-saving solution for indoor downlighting, connecting power to luminaire. Designed with limited space in mind, the low profile, UL/CSA 2459 compliant connector eliminates the hazard of electric shock and accepts 18 AWG - 22 AWG solid or tin-dipped stranded wires. It is designed for easy, tool-free installation and eliminates mis-mating through its bump feature. The poke-in technology allows for easy repair and is supported by dual contact surfaces and a metal stopper for reliability. Contacts are fully fixed in the housing and feature an additional lock bar for added dependability.
Features
- Compact design
- Dual contact surface design increases contact reliability
- Slim design for maximum Z direction space saving
Technical specifications
| Connection | Poke-In connection | |
| contact surface | tin-plated | |
| Rated voltage (DC) | 600 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 5.7 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
