3-2213678-3 | TE Connectivity
LED Connector, 3-2213678-3
Order No.: 71P7859
EAN: 4099891625573
MPN:
3-2213678-3
Unit Price (€ / pc.)
1.4875 € *
Available: 0 pcs.
Available in 5 Days: 4,986 pcs.
Leadtime: 20 Weeks **
Total Price:
1.49 € *
Price list
Quantity
Price per unit*
70 pcs.
1.4875 €
350 pcs.
1.4637 €
*incl. VAT plus shipping costs
**Subject to prior sale

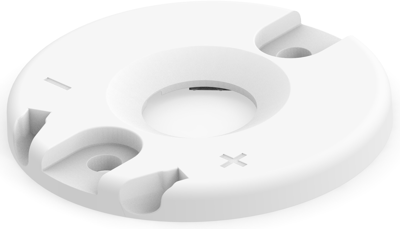

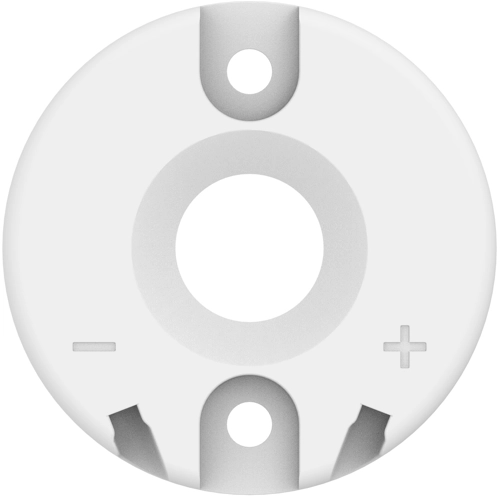

LED Connector, 3-2213678-3, TE Connectivity
The 3-2213678-3 provides a reliable electrical and mechanical connection for a light fixture’s power source, heat sink and reflector.
Features
- Quick and easy assembly of the COB LEDs into the luminaire
- Fast and easy termination
Applications
- Spot Lights
- General lighting
- Downlights
- Horticultural Lighting
Technical specifications
| Connection | Poke-In connection | |
| contact surface | gold-plated | |
| Rated voltage (DC) | 60 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 1 pole | |
| Grid | 35 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
