3-2213678-4 | TE Connectivity
LED Connector, 3-2213678-4
Order No.: 71P7860
EAN: 4099891625580
MPN:
3-2213678-4
Unit Price (€ / pc.)
1.6779 € *
Available: 0 pcs.
Available in 5 Days: 8,395 pcs.
Leadtime: 20 Weeks **
Total Price:
1.68 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6779 €
10 pcs.
1.5351 €
50 pcs.
1.3804 €
100 pcs.
1.2376 €
*incl. VAT plus shipping costs
**Subject to prior sale

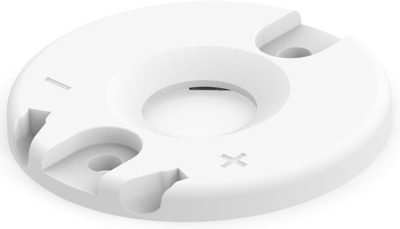

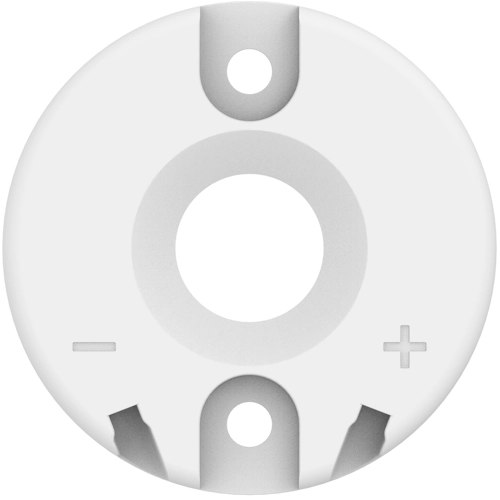

LED Connector, 3-2213678-4, TE Connectivity
The 3-2213678-4 provides a reliable electrical and mechanical connection for a light fixture’s power source, heat sink and reflector.
Features
- Quick and easy assembly of the COB LEDs into the luminaire
- Fast and easy termination
Applications
- Spot Lights
- General lighting
- Downlights
- Horticultural Lighting
Technical specifications
| Pin number | 1-polig | |
| Grid | 35 mm | |
| Connection | Poke-In-Anschluss | |
| Orientation | gerade | |
| contact surface | vergoldet | |
| Rated voltage (DC) | 60 V | |
| Rated current | 3 A |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
