1-1546412-1 | TE Connectivity
Socket, RJ45, 8 pole, 8P8C, Cat 5, solder connection, PCB mounting, 1-1546412-1
Order No.: 38P6668
EAN: 4099889821451
MPN:
1-1546412-1
Unit Price (€ / pc.)
180.7848 € *
Available: 0 pcs.
Available in 5 Days: 178 pcs.
Leadtime: 22 Weeks **
Total Price:
180.78 € *
Price list
Quantity
Price per unit*
1 pcs.
180.7848 €
3 pcs.
177.4290 €
*incl. VAT plus shipping costs
**Subject to prior sale

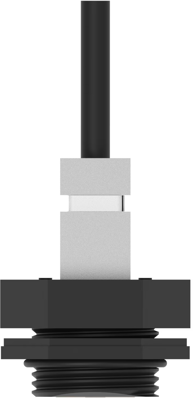

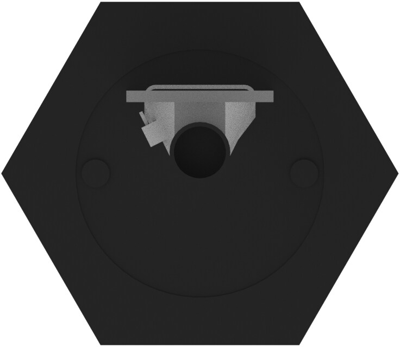

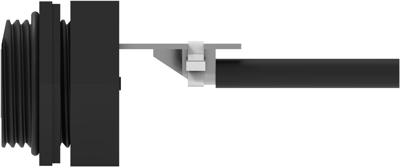

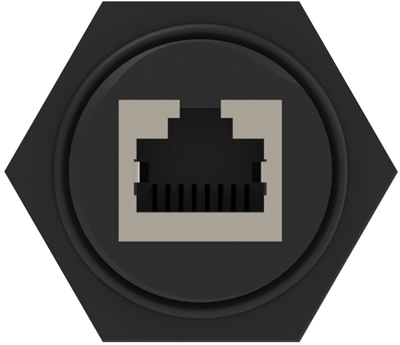

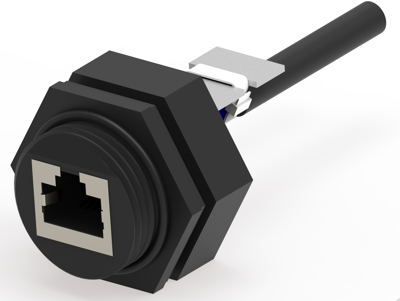

Circular RJ45 connector, 1-1546412-1, TE Connectivity
Connector & connector components type: connector, Modular jacks & plugs products: RJ type jacks & plugs, Modular connector style: receptacle, Connector system: wire-to-wire, Connector & contact terminates to: printed circuit board, Wire & Cable, Wiring pattern: T568B, Connector contact density: Standard, Number of positions: 8, Seal Material: Nitrile Rubber, Contact current rating (Max): 1.5 A, Screw & hole thread Ssze: 1-14 UNC, Connector mounting type: Panel mount, Housing material: ABS (Acrylonitrile-Butadiene-Styrene), Operating temperature range: -20-80 °C, Shielded: No, Circuit application: Signal, Performance category: Cat 5e, Packaging method: Package, Packaging quantity: 1, Additional Features: Category 5 Cable
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Category | Cat 5 | |
| Assembly | PCB mounting | |
| Pole image | 8P8C | |
| Pin number | 8 pole | |
| RJ-Version | RJ45 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444210 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
