1-2823449-1 | TE Connectivity

Plug, 5 pole, crimp connection, screw locking, straight, 1-2823449-1

Order No.: 38P6729
EAN: 4099889721812
MPN:
1-2823449-1

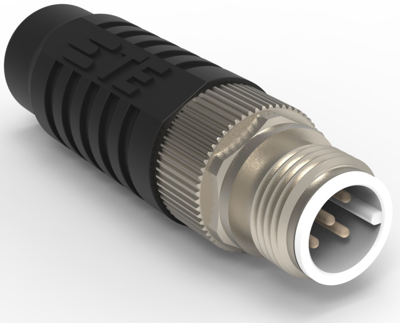

1-2823449-1 TE Connectivity Other Circular Connectors Image 1

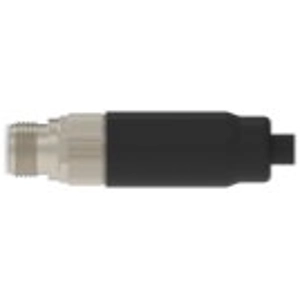

1-2823449-1 TE Connectivity Other Circular Connectors Image 2
1-2823449-1 TE Connectivity Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
74.8748 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
74.87 € *
Price list
Quantity
Price per unit*
1 pcs.
74.8748 €
5 pcs.
71.1263 €
10 pcs.
66.8542 €
25 pcs.
62.1775 €
*incl. VAT plus shipping costs
**Subject to prior sale

standard circular connector, 1-2823449-1, TE Connectivity

Product Type: Connector Kit, Connector System: Cable-to-Cable, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Plug, Number of Positions: 5, Contacts Preloaded: No, Operating Voltage: 250 VDC, Weight: 25 g, Shell Plating Material: Nickel, Shell Base Material: Brass, Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic, Hermetically Sealed: Yes, Contact Current Rating (Max): 4 A, Circular Connector Contact Type: Pin, Connector Mounting Type: Cable Mount (Free-Hanging), Polarization Code: A, Mating Alignment Type: Keyed, Mating Retention: With, Accepts Wire Insulation Diameter Range: 6.6 mm, Wire Size: 22 AWG, IP Dust Sealing Level: 6, Operating Temperature Range: -40 – 70 °C, Durability Rating: 250 Cycles, Circuit Application: Signal, Shielded: Yes, UL Flammability Rating: UL 94V-0, Packaging Quantity: 1, Field Serviceable: Yes

Technical specifications
Ausführung Stecker
Bestückung bestückt
Gehäusematerial Messing
Kabeldurchmesser 6,6 mm
Kontaktanschluss Crimpanschluss
Kontaktoberfläche vergoldet
Montage Kabelmontage
Orientierung gerade
Polzahl 5-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland IN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
