1445538-3 | TE Connectivity
Circular connector, 2 pole, crimp connection, bayonet locking, straight, 1445538-3
Unit Price (€ / pc.)
12.8877 € *
Available: 0 pcs.
Available in 5 Days: 6,339 pcs.
Leadtime: 54 Weeks **
Total Price:
12.89 € *
Price list
Quantity
Price per unit*
100 pcs.
12.8877 €
200 pcs.
11.7929 €
*incl. VAT plus shipping costs
**Subject to prior sale

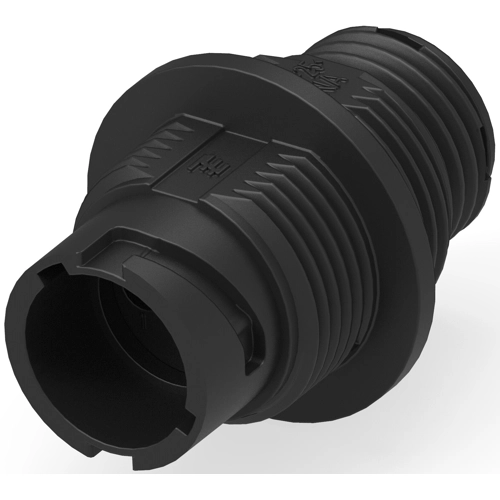

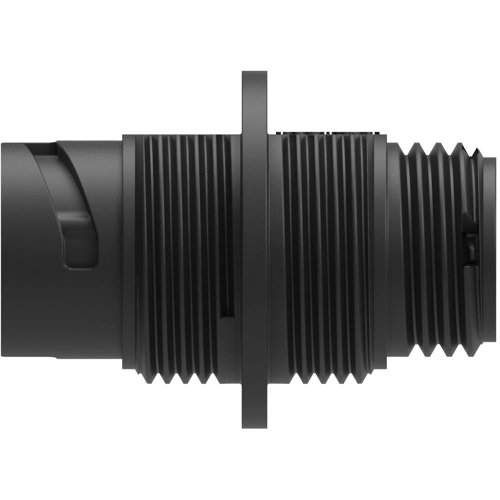

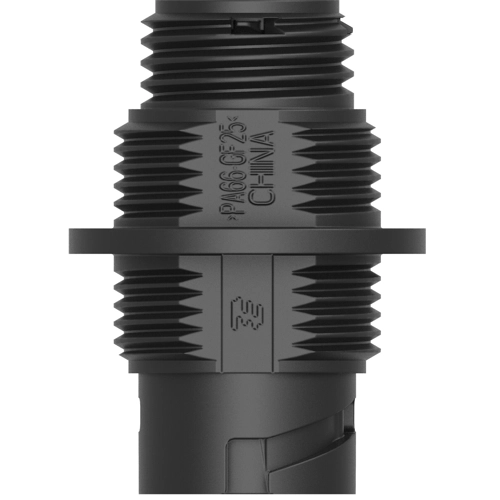

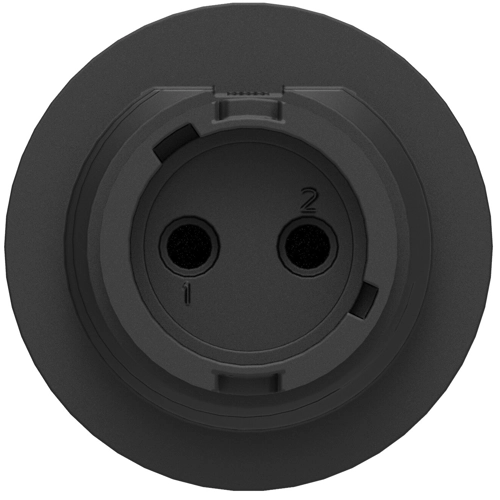

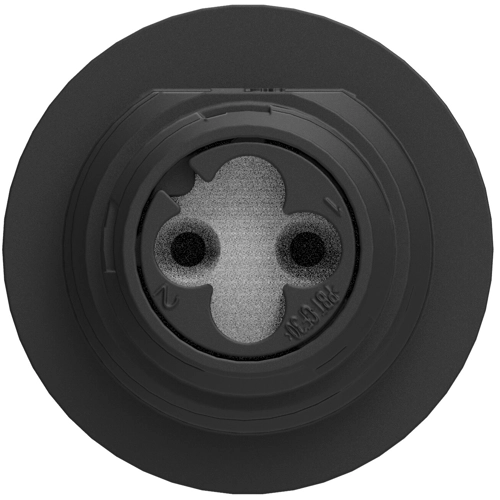

Receptacle housing, 1445538-3, TE Connectivity
Circular power connector, Housing, 250 VDC, 30-18 AWG Wire size, 0.0509-0.823 mm² Wire size, Wire-to-Wire, 2 Position, Sealable.
Technical specifications
| Version | socket | |
| Shell Material | thermoplastic | |
| Cable diameter | 1.5 to 2.39 mm | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.509-0.823 mm² | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Type of locking | bayonet locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
