4-2172072-2 | TE Connectivity

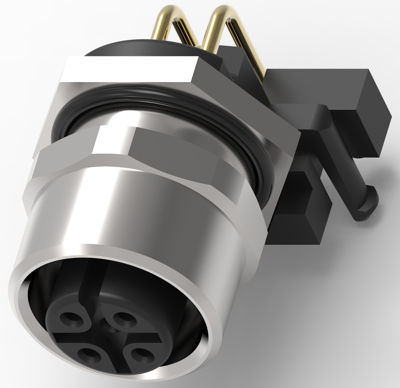

Socket, 5 pole, solder connection, screw locking, angled, 4-2172072-2
Order No.: 38P6486
EAN: 4099889720471
MPN:
4-2172072-2
Unit Price (€ / pc.)
18.0642 € *
Available: 0 pcs.
Available in 5 Days: 1,112 pcs.
Leadtime: 17 Weeks **
Total Price:
18.06 € *
Price list
Quantity
Price per unit*
5 pcs.
18.0642 €
23 pcs.
17.0051 €
*incl. VAT plus shipping costs
**Subject to prior sale
standard circular connector, 4-2172072-2, TE Connectivity
Product Type: Connector, Connector System: Wire-to-Board, Sealable: Yes, Circular Connector Type: Receptacle, Shell Type: Metal, Number of Positions: 5, Number of Power Positions: 0, Number of Signal Positions: 5, Contacts Preloaded: Yes, Shell Plating Material: Nickel, Shell Base Material: Brass, Circular Connector Insulation Material Type: Polyamide, Contact Current Rating (Max): 4 A, Reverse Gender: Yes, Contact Layout Arrangement: Circular, Circular Connector Contact Type: Socket, Connector Mounting Type: Panel Mount, Polarization Code: A, Mating Alignment Type: Keyed, Mating Retention: With, Circular Connector Shell Size: 12, IP Dust Sealing Level: 6, Operating Temperature Range: -40 – 80 °C, Circuit Application: Signal, Shielded: No
Technical specifications
| Ausführung | Buchse | |
| Bestückung | bestückt | |
| Gehäusematerial | Messing | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Leiterplattenmontage | |
| Orientierung | abgewinkelt | |
| Polzahl | 5-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
