T4110511021-000 | TE Connectivity

Name: Circular connector, 2 pole, screw connection, screw locking, straight, T4110511021-000
Brand: TE Connectivity
SKU: 72P3752
Price: 13.49 EUR
Availability: OutOfStock

Circular connector, 2 pole, screw connection, screw locking, straight, T4110511021-000

Order No.: 72P3752

EAN: 4099891708917

MPN:

T4110511021-000

Series: M12

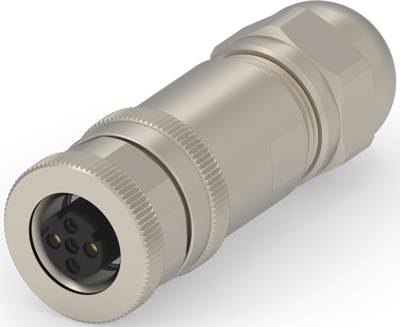

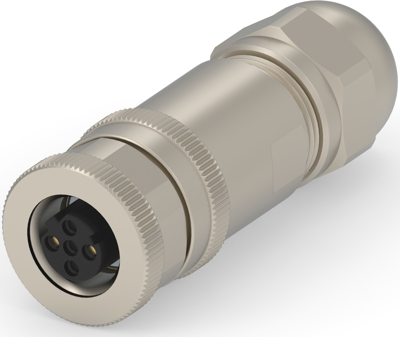

T4110511021-000 TE Connectivity Other Circular Connectors Image 2

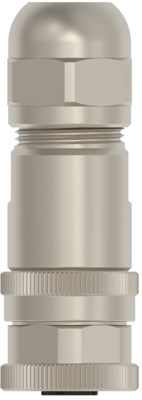

T4110511021-000 TE Connectivity Other Circular Connectors Image 3

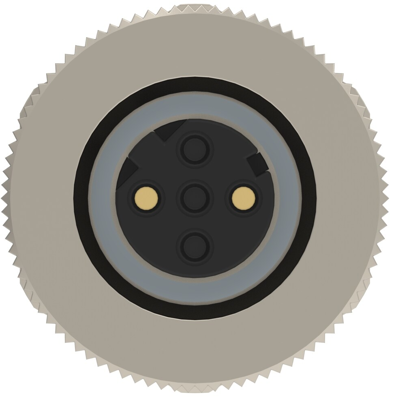

T4110511021-000 TE Connectivity Other Circular Connectors Image 4

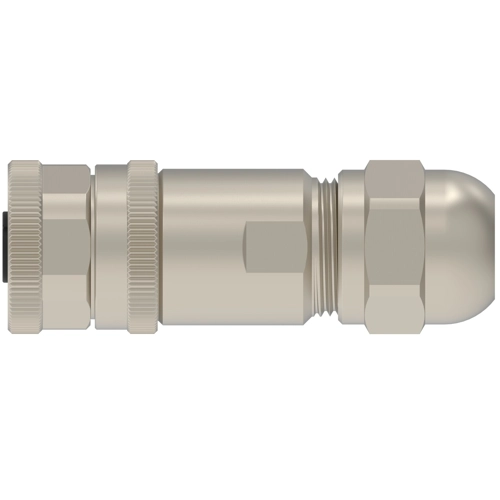

T4110511021-000 TE Connectivity Other Circular Connectors Image 5

Image may differ

Key Specification:

Version socket

Cable cross-section 0.2-0.82 mm²

Pin number 2 pole

Orientation straight

Contact connection screw connection

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

13.4946 € *

Available: 0 pcs.

Available in 5 Days: 198 pcs.

Leadtime: 24 Weeks **

Add to Cart

Total Price:

13.49 € *

Price list

Quantity

Price per unit*

10 pcs.

13.4946 €

40 pcs.

10.8885 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Circular connector, T4110511021-000, TE Connectivity

Standard circular connector, Wire-to-Wire, 2 Position, Sealable, Wire & Cable, Signal, Nickel, Brass, D Polarization code.

Technical specifications

	Version	socket
	Shell Material	PA
	Contact connection	screw connection
	contact surface	gold-plated
	Cable cross-section	0.2-0.82 mm²
	Assembly	cable assembly
	Orientation	straight
	Pin number	2 pole
	Type of locking	screw locking
