T4110511051-000 | TE Connectivity

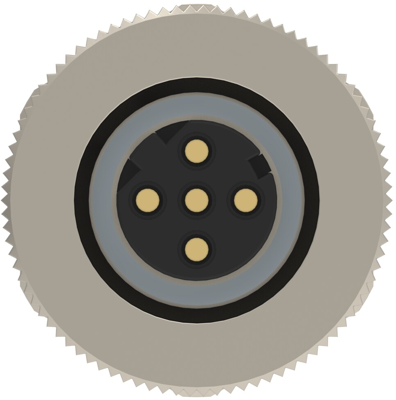

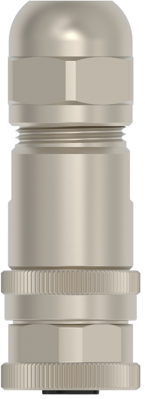

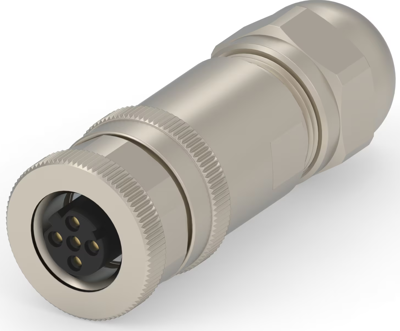

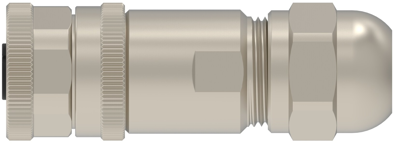

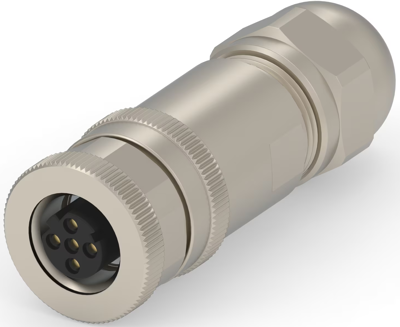

Circular connector, 5 pole, screw connection, screw locking, straight, T4110511051-000
Unit Price (€ / pc.)
16.8980 € *
Available: 0 pcs.
Available in 5 Days: 151 pcs.
Leadtime: 24 Weeks **
Total Price:
16.90 € *
Price list
Quantity
Price per unit*
10 pcs.
16.8980 €
35 pcs.
13.6493 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, T4110511051-000, TE Connectivity
Standard circular connector, Wire-to-Wire, 5 Position, Sealable, Wire & Cable, Signal, Nickel, Brass, D Polarization code.
Technical specifications
| Version | socket | |
| Shell Material | PA | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.2-0.82 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
