T4112401041-000 | TE Connectivity

Name: Circular connector, 4 pole, screw connection, screw locking, angled, T4112401041-000
Brand: TE Connectivity
SKU: 72P3790
Price: 11.38 EUR
Availability: OutOfStock

Circular connector, 4 pole, screw connection, screw locking, angled, T4112401041-000

Order No.: 72P3790

EAN: 4099891709242

MPN:

T4112401041-000

Series: M12

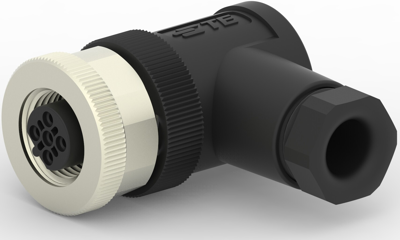

T4112401041-000 TE Connectivity Other Circular Connectors Image 2

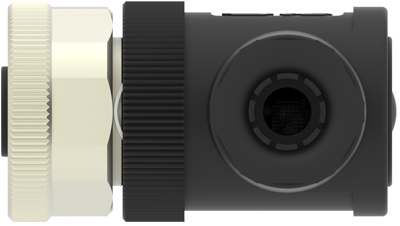

T4112401041-000 TE Connectivity Other Circular Connectors Image 3

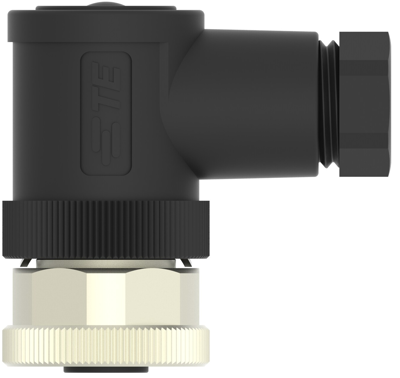

T4112401041-000 TE Connectivity Other Circular Connectors Image 4

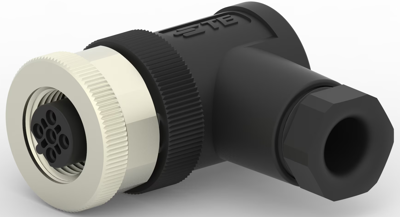

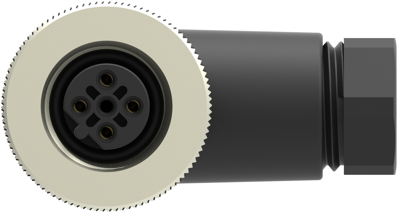

T4112401041-000 TE Connectivity Other Circular Connectors Image 5

Image may differ

Key Specification:

Ausführung Buchse

Leiterquerschnitt 0,2-0,82 mm²

Polzahl 4-polig

Orientierung abgewinkelt

Kontaktanschluss Schraubanschluss

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.3764 € *

Available: 0 pcs.

Leadtime: 25 Weeks **

Total Price:

11.38 € *

Price list

Quantity

Price per unit*

1 pcs.

11.3764 €

10 pcs.

10.4720 €

50 pcs.

9.4248 €

100 pcs.

8.4847 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Circular connector, T4112401041-000, TE Connectivity

Standard circular connector, Wire-to-Wire, 4 Position, Sealable, Wire & Cable, Signal, PBT, B Polarization code, Polyamide 66 GF25.

Technical specifications

	Ausführung	Buchse
	Gehäusematerial	PA
	Kontaktanschluss	Schraubanschluss
	Kontaktoberfläche	vergoldet
	Leiterquerschnitt	0,2-0,82 mm²
	Montage	Kabelmontage
	Orientierung	abgewinkelt
	Polzahl	4-polig
	Verriegelung	Schraubverriegelung
