T4113511051-000 | TE Connectivity

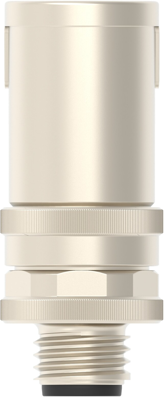

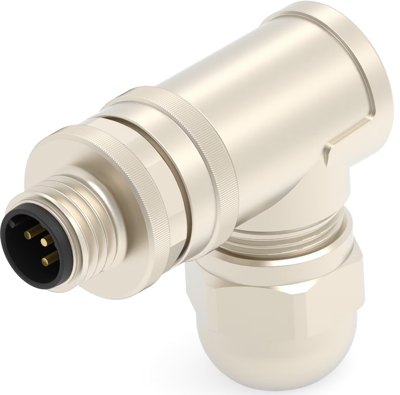

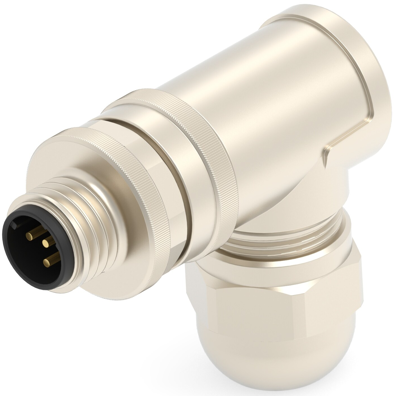

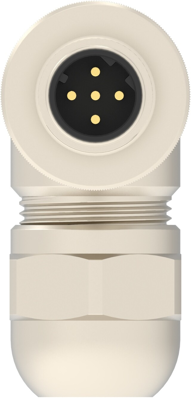

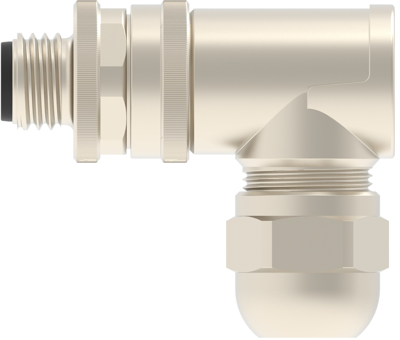

Circular connector, 5 pole, screw connection, screw locking, angled, T4113511051-000
Unit Price (€ / pc.)
13.2685 € *
Available: 0 pcs.
Available in 5 Days: 200 pcs.
Leadtime: 25 Weeks **
Total Price:
13.27 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2685 €
10 pcs.
12.1975 €
50 pcs.
10.9837 €
100 pcs.
9.8889 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector, T4113511051-000, TE Connectivity
Standard circular connector, Wire-to-Wire, 5 Position, Sealable, Wire & Cable, Signal, Nickel, Brass, D Polarization code.
Technical specifications
| Version | Stecker | |
| Shell Material | PA | |
| Contact connection | Schraubanschluss | |
| contact surface | vergoldet | |
| Cable cross-section | 0,2-0,82 mm² | |
| Assembly | Kabelmontage | |
| Orientation | abgewinkelt | |
| Pin number | 5-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
