1-1563229-2 | TE Connectivity

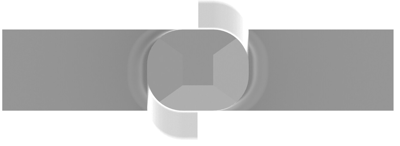

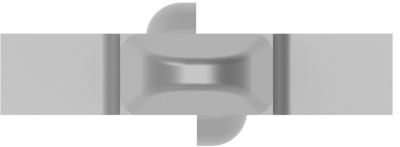

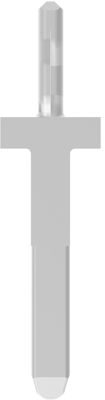

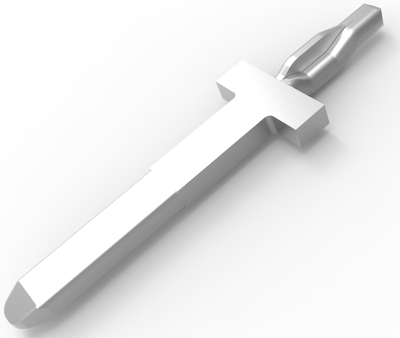

Terminal block, 1 pole, pitch 2.7 mm, straight, silver, 1-1563229-2
Order No.: 36P2351
EAN: 4099889939897
MPN:
1-1563229-2
Unit Price (€ / pc.)
0.1333 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Automotive Terminal, 1-1563229-2, TE Connectivity
Sealable: No, Terminal & Splice Type: Tab, Mating Tab Width: 1.5 mm, Mating Tab Thickness: .8 mm, Automotive Terminal Interface Plating: Tin (Sn), Contact Termination Area Plating Material: Tin (Sn), Automotive Terminal Termination Method: Press-Fit, Tab Length: 15.2 mm, PCB Hole Diameter: 1.29 mm, Operating Temperature (Max): 80 °C,85 °C,90 °C,100 °C,105 °C,110 °C,120 °C,125 °C, Operating Temperature Range: -40 – 125 °C,-40 – 125 °C, Agency/Standard: IEC 664/664A (DIN VDE 0110), Packaging Method: Box, Packaging Quantity: 30000, Customer Preferred Contact: No, Terminal Transmits: 0 – 24 A (Low Power)
Technical specifications
| Connection | press-fit | |
| Connection plating | tin-plated | |
| Version | terminal block | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | silver | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Pin number | 1 pole | |
| Grid | 2.7 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
