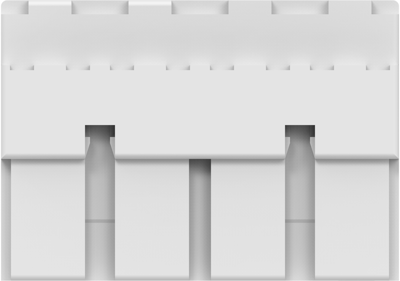

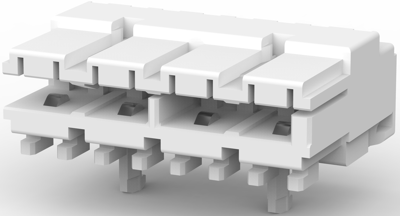

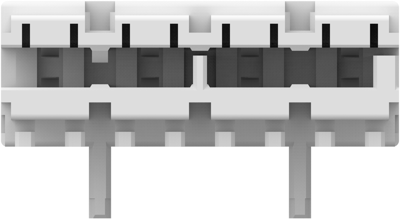

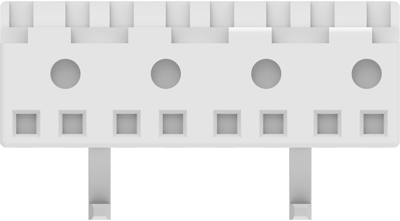

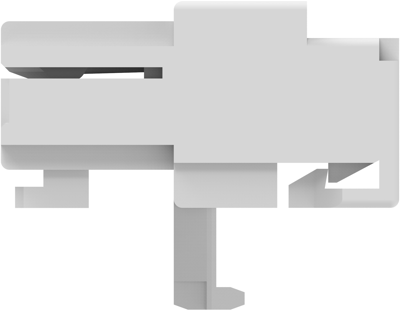

Socket, 1-1740533-4, TE Connectivity
Connector System: Wire-to-Board, Connector & Housing Type: Receptacle, Connector & Contact Terminates To: Printed Circuit Board, Compatible With Wire & Cable Type: Discrete Wire, Number of Positions: 4, Number of Rows: 1, Connector Contact Load Condition: Fully Loaded, PCB Mount Orientation: Right Angle, Operating Voltage: 250 V, Keying Between Cavity Locations: 2&3, Contact Base Material: CuNiSi, Contact Current Rating (Max): 6 A, Termination Method to Wire & Cable: Insulation Displacement Crimp (IDC), PCB Mount Retention: Without, Connector Mounting Type: Cable Mount (Free-Hanging), Housing Entry Configuration: One End Open, Centerline (Pitch): 5 mm, Housing Color: Natural, Housing Material: PA 6 GF, Wire Size: 0.35 -0.75 mm², Operating Temperature Range: -40 – 110 °C, Circuit Application: Power, UL Flammability Rating: UL 94V-0, Packaging Method: Tray
