1-1827654-1 | TE Connectivity

Pin header, 7 pole, pitch 2 mm, angled, black, 1-1827654-1

Order No.: 37P1603
EAN: 4099889953220
MPN:
1-1827654-1
TE Connectivity

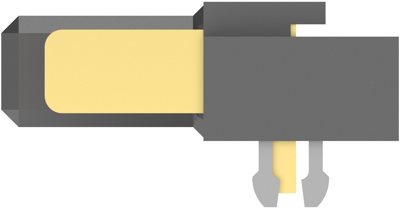

1-1827654-1 TE Connectivity PCB Connection Systems Image 1

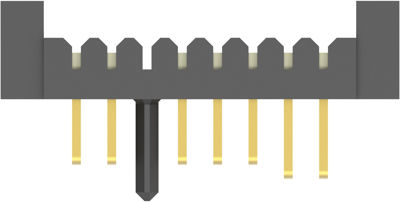

1-1827654-1 TE Connectivity PCB Connection Systems Image 2

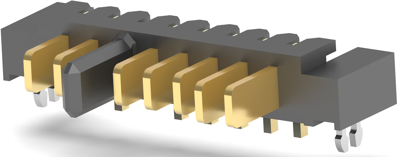

1-1827654-1 TE Connectivity PCB Connection Systems Image 3

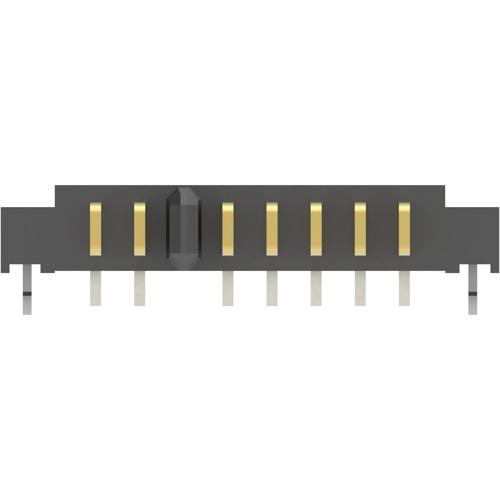

1-1827654-1 TE Connectivity PCB Connection Systems Image 4

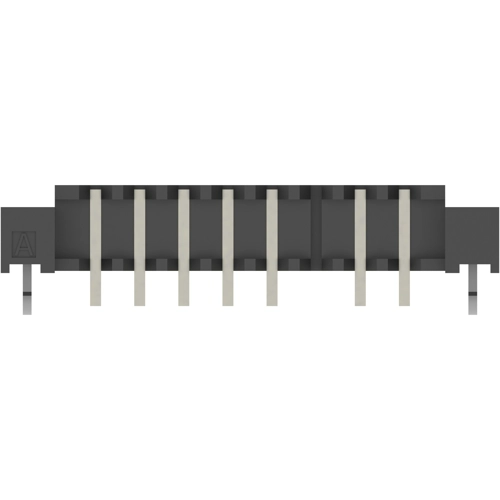

1-1827654-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.8798 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3520 pcs.
2.8798 €

PCB Connection System, 1-1827654-1, TE Connectivity

Board-to-Board, Printed Circuit Board, Right Angle, 7 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Orientation: angled
  • Number of positions: 7
  • Operating Temperature Range: -20 – 80 °C [-4 – 176 °F]
  • Rated current: 6 A
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Connection solder pin
Number of rows 1
Version pin header
Additional parts equipped
Breakable No
Colour black
Contact type pin
contact surface gold-plated
Rated voltage 30 V
Rated current 6 A
Orientation angled
Pin number 7 pole
Grid 2 mm
Type of locking Yes
Logistics
Country of origin IN
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
