1-1827864-3 | TE Connectivity

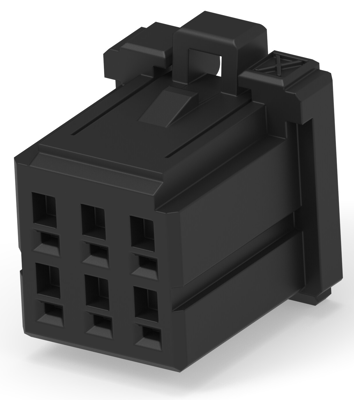

Socket header, 6 pole, pitch 2.5 mm, straight, black, 1-1827864-3
Unit Price (€ / pc.)
0.8687 € *
Available: 0 pcs.
Available in 5 Days: 7,700 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 1-1827864-3, TE Connectivity
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 2.5 mm
- Row-to-Row Spacing: 3.3 mm [0.129 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Bestückung | unbestückt | |
| Brechbar | No | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Nennspannung | 250 V | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Rastermaß | 2.5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
