1-1827864-5 | TE Connectivity

Socket header, 10 pole, pitch 2.5 mm, straight, black, 1-1827864-5

Order No.: 38P6818
EAN: 4099889973280
MPN:
1-1827864-5
Series: DYNAMIC

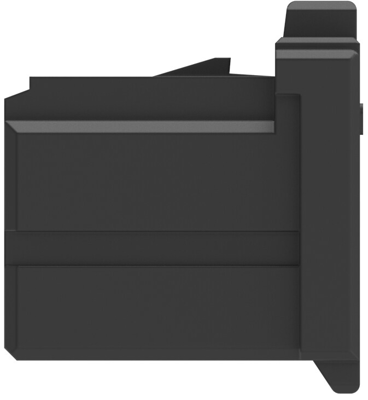

1-1827864-5 TE Connectivity PCB Connection Systems Image 1

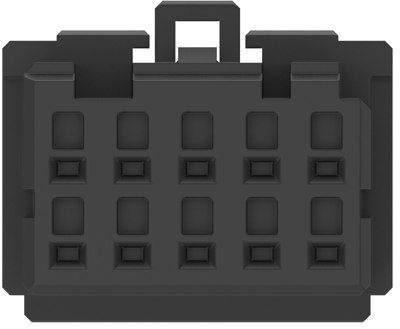

1-1827864-5 TE Connectivity PCB Connection Systems Image 2

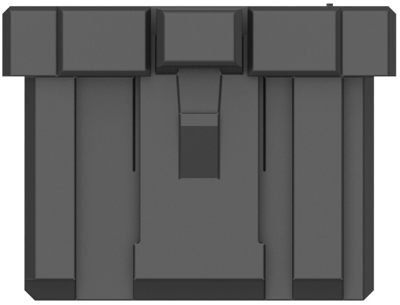

1-1827864-5 TE Connectivity PCB Connection Systems Image 3

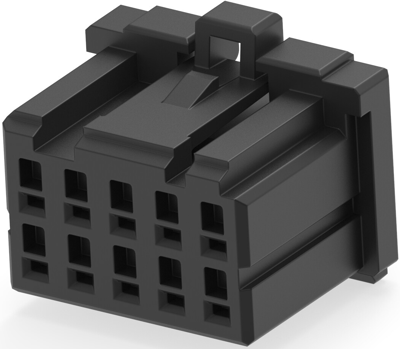

1-1827864-5 TE Connectivity PCB Connection Systems Image 4

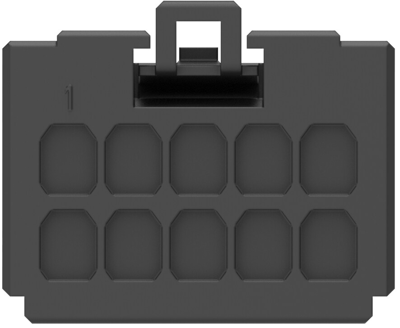

1-1827864-5 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9758 € *
Available: 0 pcs.
Available in 5 Days: 19,344 pcs.
Leadtime: 22 Weeks **
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9758 €
10 pcs.
0.8806 €
50 pcs.
0.7854 €
100 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 1-1827864-5, TE Connectivity

Wire-to-Board, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • Row-to-Row Spacing: 3.3 mm [0.129 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Anschluss Crimpanschluss
Anzahl der Reihen 2
Ausführung Buchsenleiste
Bestückung unbestückt
Brechbar No
Farbe schwarz
Kontaktart Buchse
Nennspannung 250 V
Orientierung gerade
Polzahl 10-polig
Rastermaß 2.5 mm
Verriegelung Ja
Logistics
Ursprungsland IN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
